Hydrophilic Swell Bar

Hydrophilic Swell Bar

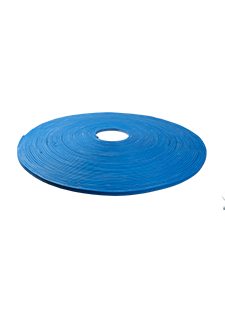

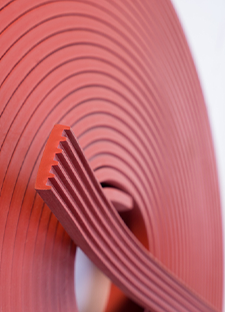

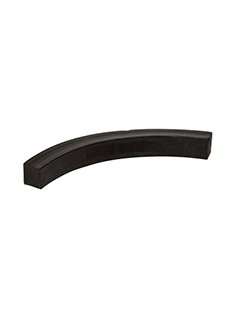

Maruti Hydrophilic Swell Bar Maruti swell bar is used for sealing of concrete construction joints, pre-cast concrete segments, proofing of shafts and pipe penetration subject to continuous or intermittent hydrostatic pressure. It swells in contact with water to seal the gaps and pores in a concrete joint. It can swell up to 450%.

ADVANTAGES AND FUNCTIONS

  • Easy and secure application
  • Good Swelling properties on contact with water
  • Good Elastic Properties
  • Permanent water resistance, no leaching
  • Non-Polluting, ecological user friendly system
  • Need no harding time

INSTALLATION OF SWELL BAR

  • Sirface should be clan and dry.
  • Rubber can be bound to concrete surface by driving nails, hooks or adgesive.
  • Typically the product in installed at the centre and should have atleast 80mm cover.
  • The coil ends should overlap atleast 10cm side by side.
  • Keep away from moisture to avoide premature swelling.
