Toughstrap

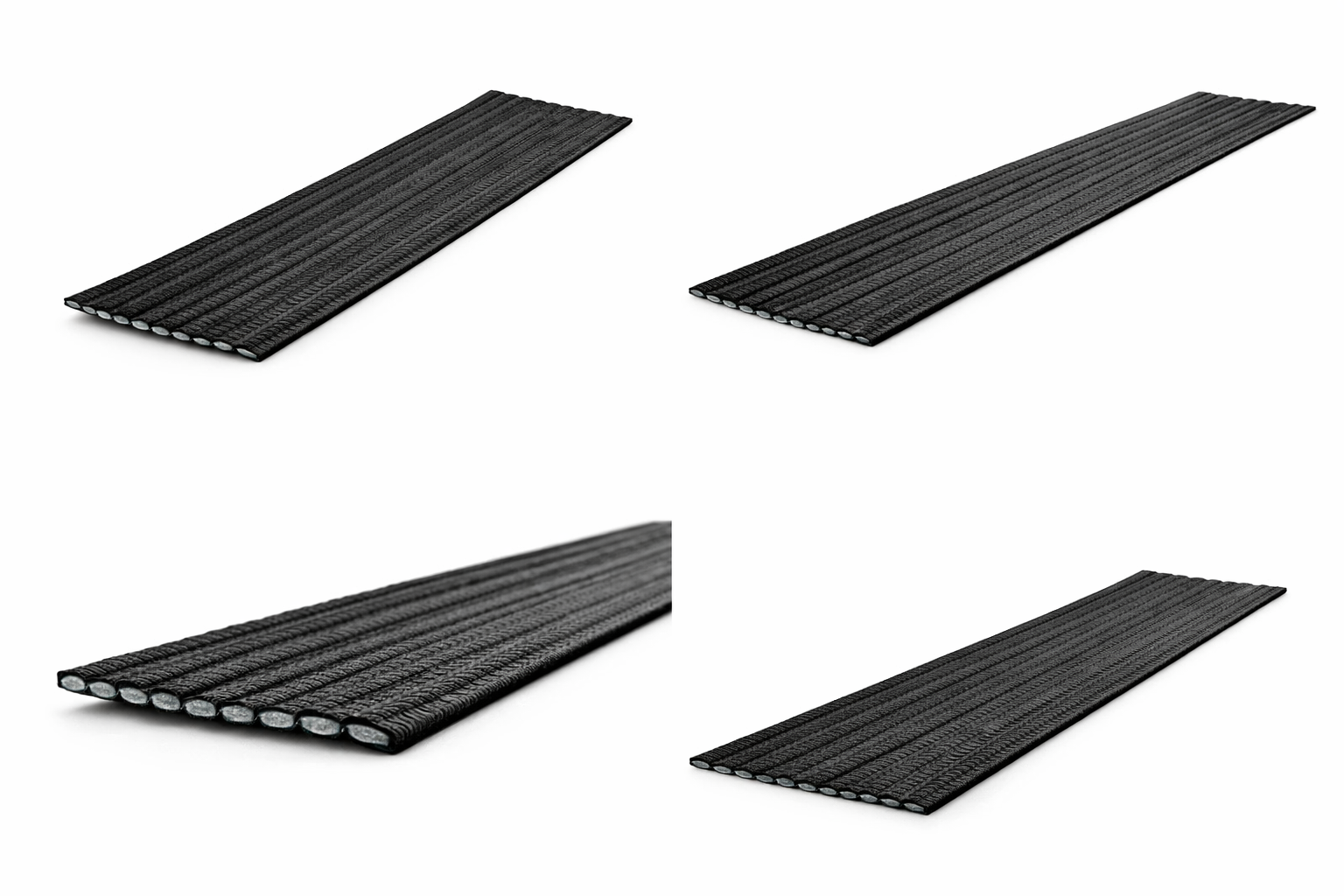

Maruti Toughstrap is a high-performance planar soil reinforcement system engineered for demanding geotechnical and structural earth applications such as mechanically stabilized earth (MSE) retaining walls, bridge abutments, steep slopes, and heavy load-bearing embankments.

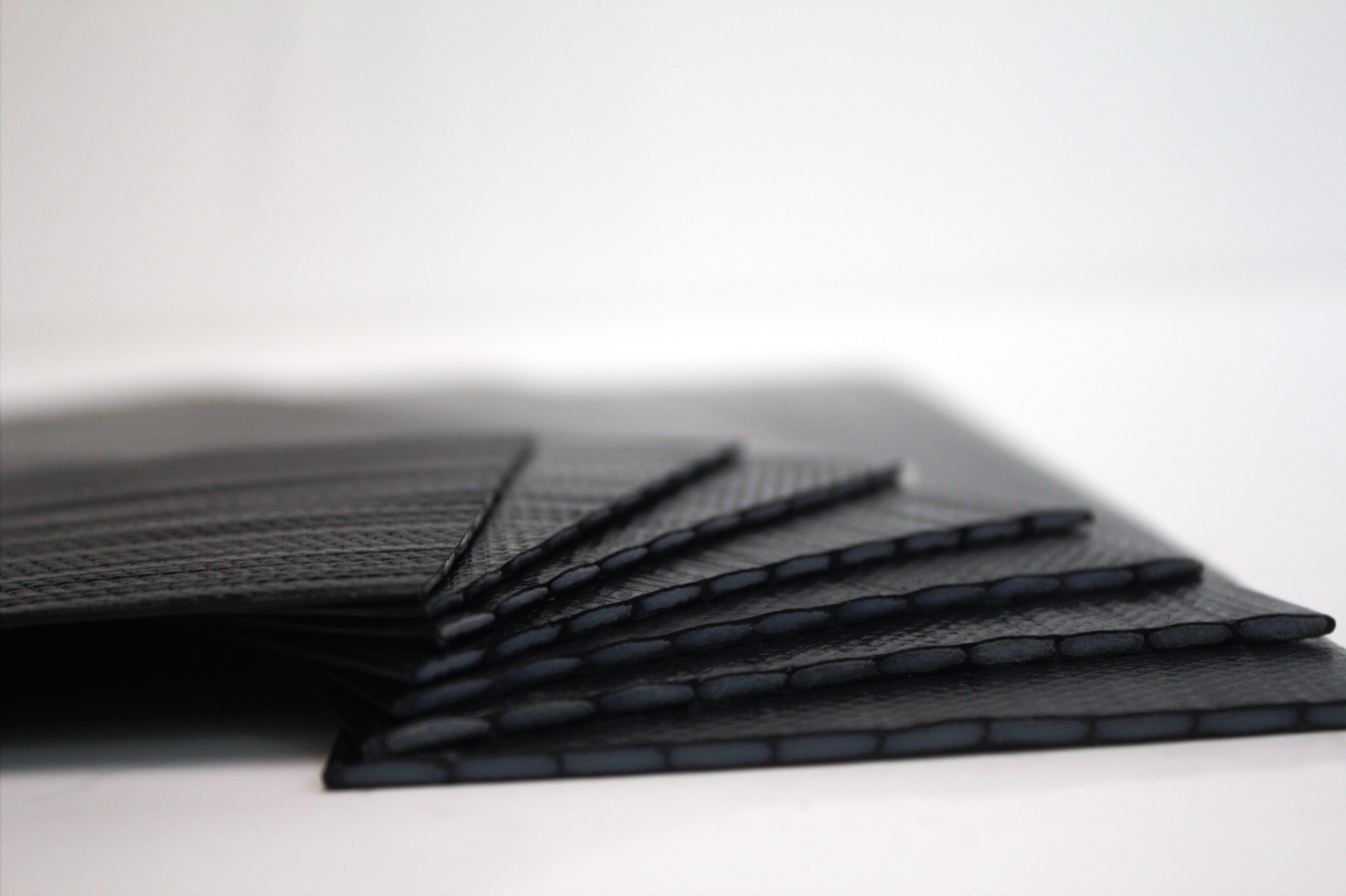

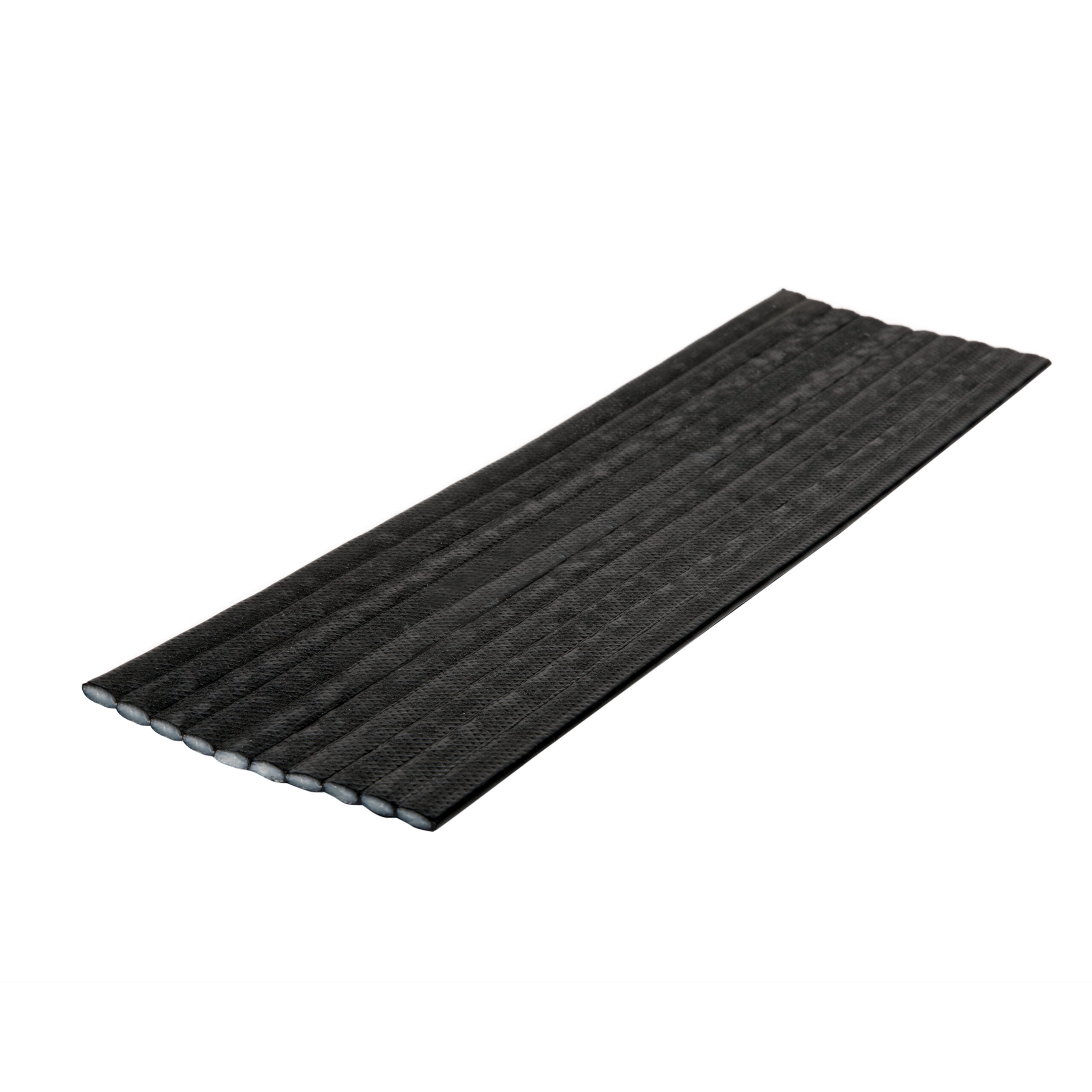

The system consists of high-modulus reinforcement strips manufactured using high-tenacity polyester (PET) yarn tendons embedded within a durable polymer matrix and encapsulated within a protective polymer sheath, typically polyethylene (PE) or polypropylene (PP). This composite structure provides exceptional tensile strength, long-term durability, and resistance to environmental degradation.

The polyester reinforcement core provides the primary tensile strength, while the surrounding polymer sheath protects the reinforcement from mechanical damage, moisture ingress, ultraviolet exposure, chemical attack, and biological degradation. This design ensures that Maruti Toughstrap maintains its structural integrity even in aggressive environmental conditions.

Due to the superior mechanical properties of polyester fibers, Maruti Toughstrap exhibits very low creep deformation under sustained loads, which is critical for long-term soil reinforcement applications. As a result, the system is capable of delivering a design service life of up to 120 years, making it suitable for permanent infrastructure projects.

Maruti Toughstrap has been extensively engineered to provide high performance, reliability, and ease of installation, making it one of the most trusted reinforcement solutions for modern geotechnical construction.

Category:



Maruti Toughstrap is specifically designed for reinforced soil structures that require high tensile strength and long-term durability.

Tall Mechanically Stabilized Earth (MSE) Retaining Walls

Toughstrap reinforcement strips are widely used in MSE retaining wall systems constructed with precast concrete panels or modular block facings. The strips connect directly to the facing panels, forming a reinforced soil mass capable of supporting large earth pressures.

Bridge Abutments and Wing Walls

Toughstrap systems are commonly used for bridge abutment support structures, where they provide the necessary reinforcement to stabilize the soil mass supporting bridge loads.

Steep Slope Stabilization

Reinforcement strips can be installed within soil layers to stabilize steep slopes and prevent slope failure caused by erosion or soil displacement.

Back-to-Back Retaining Wall Systems

In constrained urban environments where space is limited, Toughstrap reinforcement allows the construction of back-to-back reinforced earth walls with minimal footprint.

Load-Bearing Reinforced Soil Structures

The system is suitable for constructing reinforced embankments, load-bearing soil platforms, and other structural earth systems used in urban infrastructure projects.

Aggressive Environmental Conditions

Due to its protective polymer sheath and polyester core, Maruti Toughstrap performs reliably in challenging environments such as:

  • Landfills and waste containment facilities
  • Industrial areas with chemical exposure
  • Marine and coastal environments
  • High-moisture soil conditions

High Tensile Strength: Maruti Toughstrap is available in a wide range of tensile strengths, making it suitable for both moderate and extremely tall reinforced soil structures.

Exceptional Long-Term Creep Resistance: Polyester reinforcement fibers exhibit significantly lower creep deformation compared to polyolefin materials such as polypropylene or HDPE, ensuring reliable long-term performance.

Chemical and Biological Resistance: The protective polymer sheath prevents degradation from chemicals, soil microorganisms, and environmental exposure.

Lightweight and Flexible: Unlike traditional steel reinforcement strips, Toughstrap is lightweight and flexible, allowing easy transportation, handling, and installation on site.

Non-Corrosive: Because the system does not contain metallic components, it is completely resistant to corrosion, even in highly aggressive soil environments.

Ease of Installation: Toughstrap reinforcement strips can be supplied in coiled form, allowing them to be easily cut, handled, and positioned during installation.

Cost Efficiency: Reduced transportation weight, simplified installation procedures, and elimination of corrosion protection requirements make Toughstrap a cost-effective alternative to traditional reinforcement materials.

Features Maruti Toughstrap Steel Strip Geogrid
Corrosion ❌ No ✅ Yes ❌ No
Long Term Strength ✅ High ✅ High ⚠️ Medium (depends on polymer)
Connection to Concrete ✅ Direct ✅ Direct ⚠️ Complex
Cost ⚖️ Medium ⚖️ Medium–High ✅ Low–Medium
Installation ✅ Easy ⚠️ Heavy handling ✅ Easy

Maruti Toughstrap is designed as a multi-component reinforcement system, where each layer contributes to its mechanical performance and durability.

Polyester Reinforcement Core

The core component consists of high-tenacity polyester (PET) yarn tendons, which are aligned in the longitudinal direction to provide high tensile resistance. Polyester is widely recognized in geotechnical engineering for its excellent tensile properties, low creep behavior, and long-term dimensional stability.

These yarn tendons are responsible for carrying the primary tensile loads generated within reinforced soil structures.

Polymer Encapsulation Layer

The polyester yarn tendons are embedded within a polymer matrix that holds them in position and ensures uniform load transfer across the reinforcement strip.

Protective Polymer Sheath

The entire reinforcement strip is encased in a protective polymer sheath, usually made of polyethylene (PE) or polypropylene (PP). This sheath provides several important protective functions:

  • Prevents moisture penetration
  • Protects the polyester core from mechanical damage during installation
  • Shields the reinforcement from chemical exposure in soils
  • Prevents biological degradation caused by microorganisms
  • Improves abrasion resistance

This multi-layer construction ensures that Maruti Toughstrap maintains its mechanical performance over long service periods in diverse soil environments.

Maruti Toughstrap works as a tensile reinforcement element within mechanically stabilized earth (MSE) structures. When installed within compacted soil layers, the reinforcement strips interact with the surrounding backfill material to form a composite reinforced soil mass.

The reinforcement mechanism is based on the following principles:

Tensile Resistance

The reinforcement strips resist tensile forces generated by soil pressure and structural loads, preventing lateral soil movement.

Frictional Interaction

The surface of the polymer sheath interacts with the surrounding soil particles, creating frictional resistance that anchors the reinforcement within the soil mass.

Load Transfer

Loads from the retaining structure are transferred into the reinforcement strips, which distribute these stresses throughout the reinforced soil block.

Soil Confinement

By restricting lateral movement of soil particles, the reinforcement improves the shear strength and stability of the reinforced soil structure.

This combination of mechanisms allows reinforced soil structures to behave as a gravity mass capable of supporting high loads while maintaining stability.
