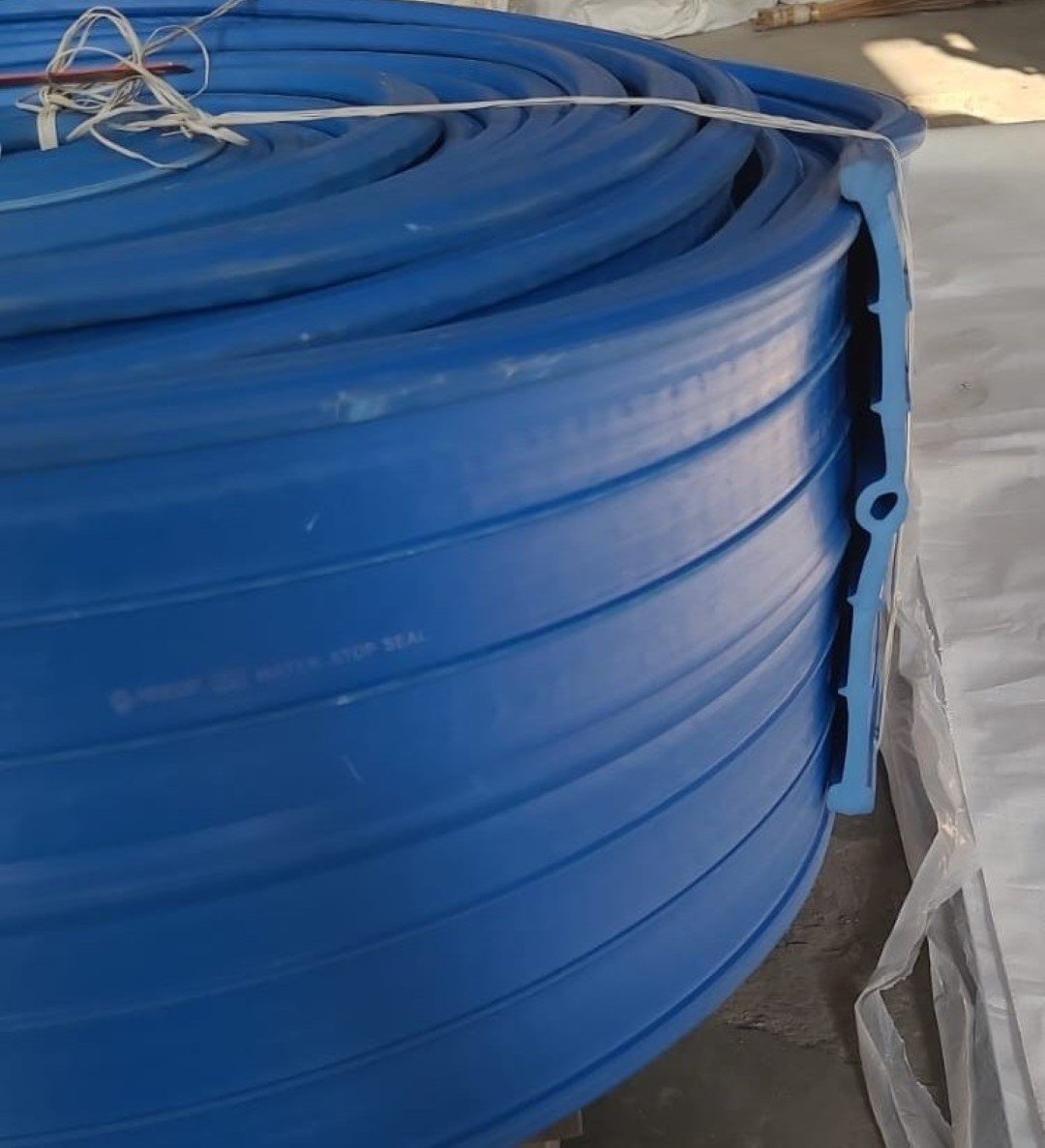

Polyvinyl Chloride (PVC) Water Stop Seal
Water Proofing

Polyvinyl Chloride (PVC) Water Stop Seal

Virgin-PVC water stop seals that form a reliable, durable barrier against water leakage through concrete construction joints.

Request A Quote
Download Technical Datasheet

Manufactured under ISO 9001:2015 certified quality systems, built to specification for OEM and infrastructure applications.

Overview

Reliable Joint Waterproofing Solution for Concrete Structures

Maruti PVC Water Stop Seals are high-performance joint sealing systems designed to prevent the passage of water through construction joints in concrete structures. Manufactured from premium-grade virgin Polyvinyl Chloride (PVC) and produced under strict quality control standards, these waterstops provide a highly reliable and durable barrier against water leakage.

Concrete structures such as basements, tunnels, water tanks, and retaining walls typically contain construction joints where two concrete pours meet. These joints can become vulnerable points for water infiltration if not properly sealed. Maruti PVC Water Stop Seals are specifically engineered to be embedded within these joints, forming a continuous impermeable barrier that blocks water movement through the joint.

The flexible nature of PVC allows the waterstop to accommodate structural movement, shrinkage, and expansion of concrete, ensuring long-term waterproofing performance even under changing environmental and loading conditions.

Due to their high hydrostatic pressure resistance, durability, and chemical stability, Maruti PVC Water Stop Seals are widely used in water-retaining structures, underground construction, hydraulic structures, and infrastructure projects.

Key Features & Benefits

Excellent Water Tightness - Maruti PVC Water Stop Seals provide an effective waterproof barrier that prevents water penetration through construction joints. The specially designed profiles ensure strong bonding with concrete and block water migration.

High Durability - Manufactured using high-quality virgin PVC compounds, the waterstops exhibit excellent durability under harsh environmental conditions. They maintain their physical properties over extended periods without deterioration.

Flexibility and Movement Accommodation - PVC Water Stop Seals are highly flexible and capable of absorbing minor structural movements caused by temperature fluctuations, settlement, or dynamic loads. This flexibility prevents cracking or joint failure.

High Hydrostatic Pressure Resistance - The product is capable of withstanding high water pressure, making it suitable for structures exposed to groundwater or water retention. Applications such as dams, reservoirs, and underground tunnels require this level of performance.

Chemical and Corrosion Resistance - PVC waterstops offer strong resistance to a wide range of chemicals commonly found in soil and water environments. They are also resistant to corrosion and biological attack, ensuring reliable long-term performance.

Easy Installation - The seals are designed for simple integration into concrete joints during the construction process. Their lightweight and flexible design allows easy handling and accurate placement.

Long Service Life - Maruti PVC Water Stop Seals are engineered to maintain their structural integrity for decades. Their resistance to aging, weathering, and environmental degradation ensures long-term waterproofing performance.

Applications

PVC Water Stop Seals are widely used across multiple infrastructure sectors where joint waterproofing is critical.

  • Basements and Foundations - Used in foundation slabs and basement walls to prevent groundwater from entering underground structures.
  • Water Retaining Structures - Commonly used in structures designed to hold water, including:
    • Water storage tanks
    • Swimming pools
    • Reservoirs
    • Treatment plants
  • Tunnels, Subways, and Culverts - In underground construction projects, waterstops protect tunnel joints from groundwater infiltration.
  • Sewage and Wastewater Systems - PVC waterstops provide reliable sealing in wastewater structures such as:
    • Sewage treatment plants
    • Manholes
    • Drainage channels
  • Bridge Decks and Expansion Joints - Bridge structures require flexible joint sealing systems to accommodate movement caused by traffic loads and temperature changes.
  • Retaining Walls and Pumping Stations - Waterstops are installed in retaining structures and pumping stations to prevent water seepage through construction joints.

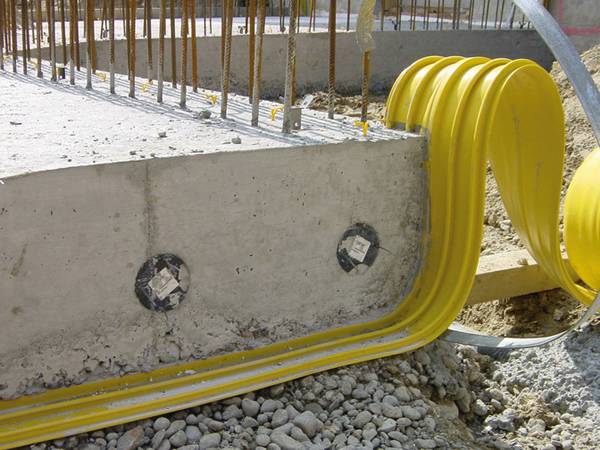

How do PVC Water Stop Seals Work?

PVC Water Stop Seals function as a physical barrier embedded within concrete joints.

When installed during the concreting process:

  1. Half of the waterstop profile is embedded in the first concrete pour.
  2. The remaining portion is embedded in the subsequent concrete pour.
  3. Once the concrete cures, the waterstop becomes an integral part of the joint.

The ribbed or bulb-shaped profile creates multiple barriers that prevent water from passing through the joint. Even when exposed to hydrostatic pressure, the design forces water to follow a longer path, significantly reducing the possibility of leakage.

The flexibility of PVC allows the waterstop to accommodate joint movement caused by temperature changes, settlement, or structural loading, ensuring continuous sealing performance over time.

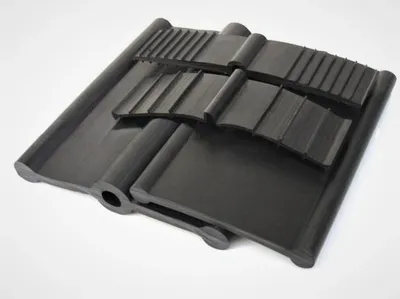

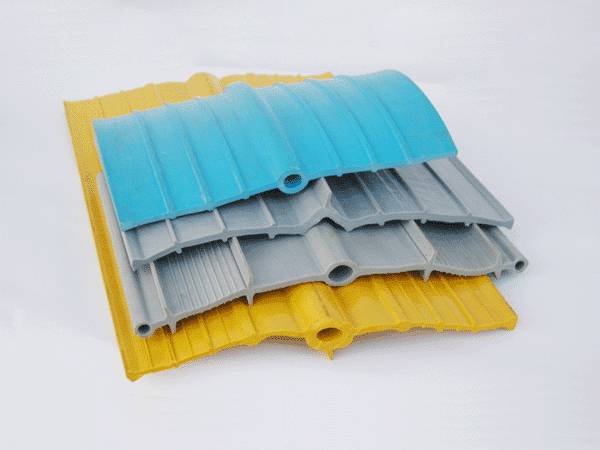

Types

Different structural joints require different waterstop profiles. Maruti PVC Water Stop Seals are available in a variety of shapes and sizes to suit different construction requirements.

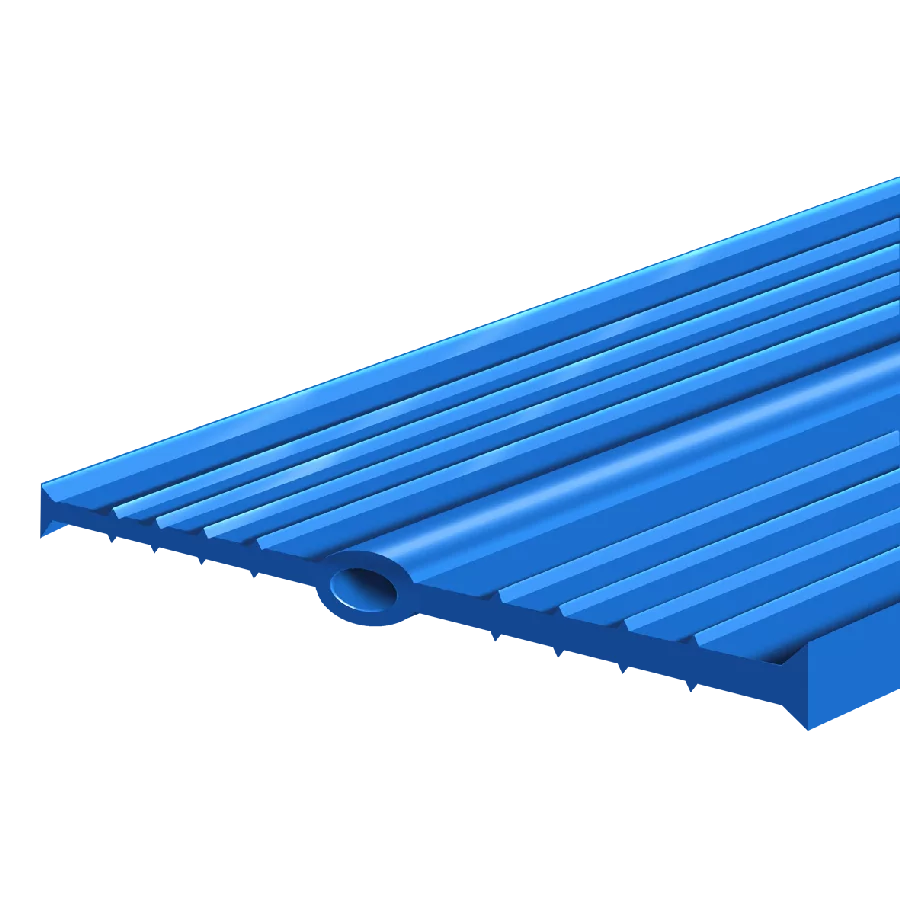

Center Bulb Water Stop

Designed for expansion and contraction joints, the central bulb allows the seal to absorb large structural movements without losing sealing capability.

Typical uses:

  • Expansion joints in dams
  • Bridge expansion joints
  • Large concrete structures subject to thermal movement
Dumbbell Water Stop

Used primarily in construction joints where minimal movement is expected.

Typical uses:

  • Basement walls
  • Water tanks
  • Retaining walls
  • Concrete slabs
Ribbed Water Stop

Features multiple ribs that enhance the mechanical bond between the waterstop and concrete.

Typical uses:

  • High hydrostatic pressure environments
  • Underground structures

Quality Standards and Testing

Maruti PVC Water Stop Seals are manufactured under strict quality control processes and comply with relevant IS standards and international testing procedures. Each batch undergoes testing to ensure consistent mechanical and physical performance.

Downloads

Polyvinyl Chloride (PVC) Water Stop Seal — Technical Datasheet PDF · Click to download
