OMEGA Seal Expansion Joints
Civil Infrastructure Components

OMEGA Seal Expansion Joints

OMEGA seal expansion joints delivering a durable, watertight, resilient connection that manages thermal and dynamic movement in infrastructure.

Request A Quote
Download Technical Datasheet

Manufactured under ISO 9001:2015 certified quality systems, built to specification for OEM and infrastructure applications.

Overview

High-Performance Elastomeric Expansion Joint System for Infrastructure and Industrial Structures

Maruti OMEGA Seal Expansion Joints are advanced elastomeric expansion joint systems designed to accommodate structural movement while maintaining a durable, watertight, and resilient connection between adjoining structural elements. Developed for use in critical infrastructure and industrial environments, these joints effectively manage thermal expansion, contraction, dynamic loading, and structural settlement without compromising structural integrity or surface continuity.

Manufactured by Maruti Techno Rubber Pvt. Ltd., these expansion joints incorporate specially engineered omega-shaped elastomeric sealing profiles, reinforced with high-strength materials such as steel plates or anchoring systems, ensuring reliable performance under both static and dynamic loading conditions.

The distinctive omega-shaped geometry allows the joint to flex and absorb movement while maintaining a continuous seal. This design prevents the ingress of water, debris, dust, and corrosive substances, thereby protecting structural components and extending the lifespan of the structure.

OMEGA Seal Expansion Joints are widely used in bridges, highways, industrial flooring, parking structures, water-retaining facilities, and pedestrian infrastructure, where they provide a long-lasting solution for managing structural movement while maintaining safety and durability.

Key Features & Benefits

Superior Sealing Performance - The specially designed omega-shaped profile ensures tight sealing against water, dust, debris, and contaminants. This prevents corrosion of structural components and protects reinforcement steel from moisture penetration.

High Load Resistance - Maruti OMEGA Seal Expansion Joints are engineered to withstand heavy vehicular loads, continuous traffic, and industrial equipment movement. The reinforced design ensures reliable performance even in high-stress environments.

Exceptional Durability - The elastomeric materials used in the joints provide excellent resistance to:

  • Abrasion and wear
  • Ultraviolet (UV) radiation
  • Chemical exposure
  • Extreme temperature variations

This durability ensures a long service life even in harsh environmental conditions.

Flexibility and Movement Accommodation - The omega-shaped seal allows the joint to accommodate large structural movements caused by:

  • Thermal expansion and contraction
  • Structural settlement
  • Dynamic loads and vibrations

This flexibility ensures that the joint continues to perform effectively without compromising structural integrity.

Waterproof and Corrosion Resistant - By preventing water ingress, the joint protects underlying structural elements and reinforcement steel from corrosion. This is particularly important in bridges, water-retaining structures, and underground infrastructure.

Low Maintenance Requirements - Once installed, Maruti OMEGA Seal Expansion Joints require minimal maintenance, making them a cost-effective solution for long-term infrastructure performance.

Quick and Efficient Installation - The modular design allows for fast installation with minimal site preparation, reducing labor costs and project timelines.

Applications

  1. Bridges & Overpasses:
    • OMEGA Seal Expansion Joints are ideal for use in bridge decks and overpasses, where they accommodate the expansion and contraction caused by temperature changes, traffic loads, and vibrations, ensuring smooth transitions and long-term structural stability.
  2. Roadways & Highways:
    • These joints are used in paved roads and highways to manage movement caused by thermal expansion and the weight of heavy traffic, providing a seamless and durable surface while preventing cracks and surface degradation.
  3. Water Retaining Structures:
    • Perfect for dams, reservoirs, sewage treatment plants, and other water-retaining structures, OMEGA Seal Expansion Joints ensure waterproofing, preventing leakage and maintaining the integrity of the structure under water pressure.
  4. Industrial Applications:
    • Used in industrial facilities, warehouses, and factory floors, where expansion and contraction due to temperature fluctuations and vibrations must be managed effectively to protect structural elements and machinery.
  5. Parking Structures:
    • These joints are ideal for multi-story parking structures where the expansion and contraction of concrete slabs, coupled with constant traffic, can cause damage. OMEGA Seal Joints provide a durable solution, ensuring long-term performance.
  6. Pedestrian Walkways & Tunnels:
    • Installed in walkways, tunnels, and subway systems, these joints ensure a smooth and safe surface by absorbing movement and preventing cracking or displacement of materials.



Working Principle

Structural components such as concrete slabs, bridge decks, and industrial floors naturally expand and contract due to temperature changes, load variations, shrinkage, and settlement. Without a properly designed expansion joint system, these movements can lead to cracking, structural stress, and premature failure.

Maruti OMEGA Seal Expansion Joints are designed to accommodate these movements through a flexible elastomeric sealing profile that expands and contracts along with the structure.

The omega-shaped cross-section acts as a flexible compression and expansion chamber. As adjacent structural elements move apart or come closer together, the seal flexes accordingly while maintaining a tight and watertight barrier.

This movement absorption capability helps:

  • Reduce stress on structural elements
  • Prevent cracking or structural deformation
  • Maintain waterproofing performance
  • Provide smooth transitions across joints

The reinforced anchoring system ensures that the joint remains securely fixed even under heavy traffic loads, vibrations, and environmental stress.

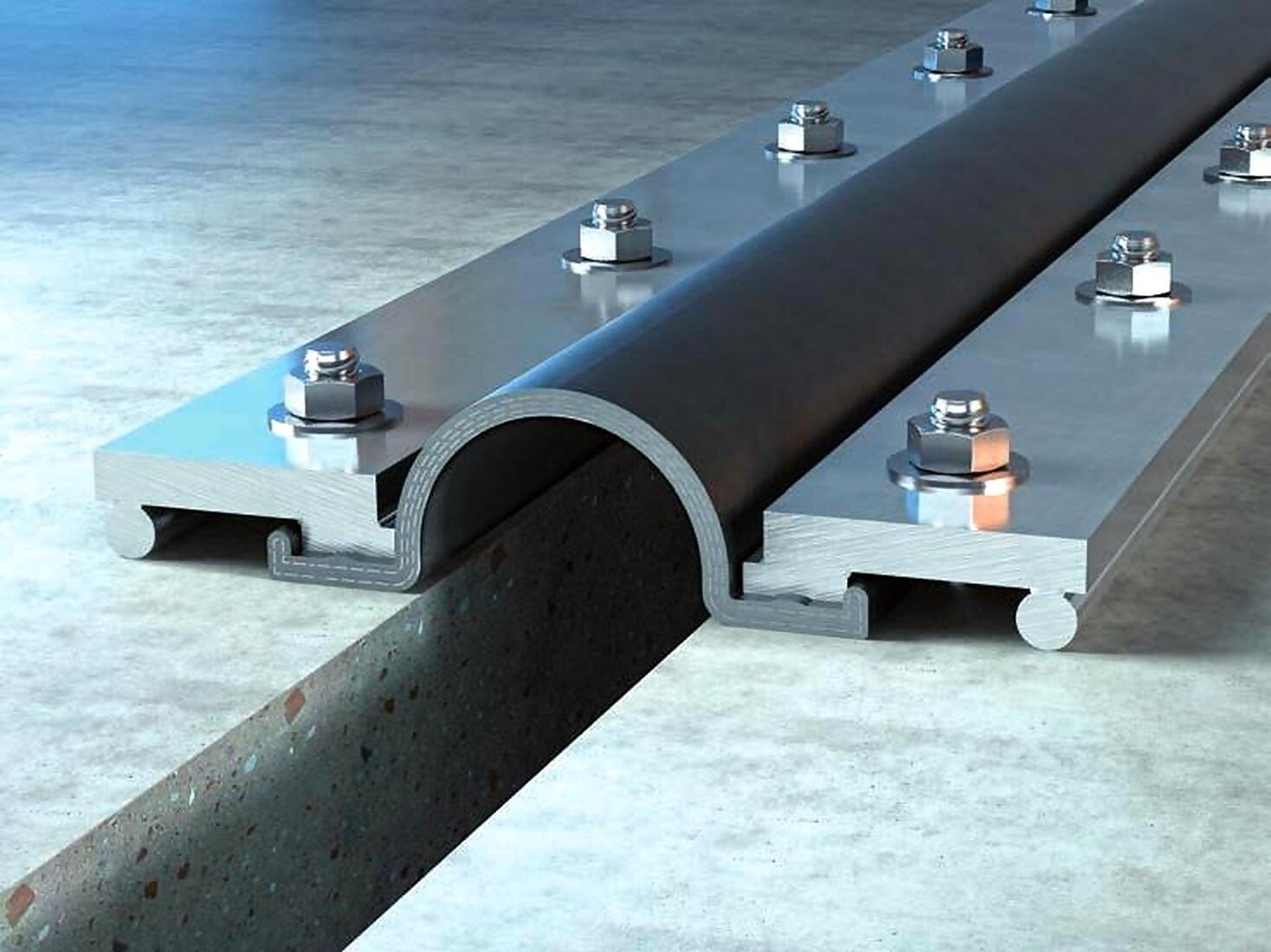

Product Construction

Maruti OMEGA Seal Expansion Joints consist of several integrated components designed to deliver high structural performance.

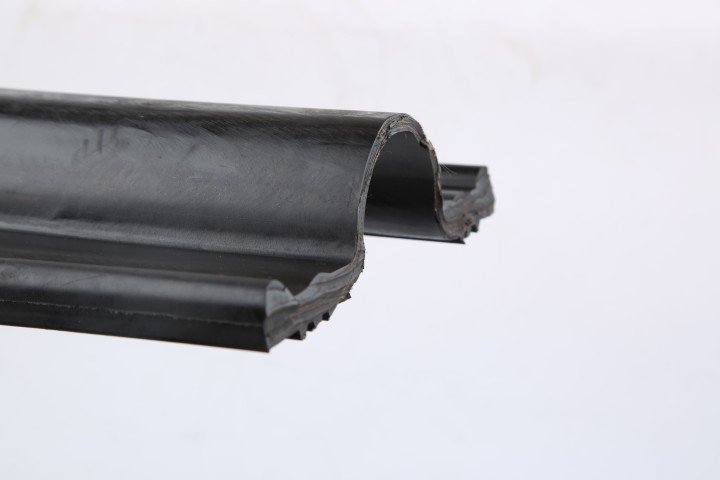

Elastomeric Omega Profile

The central component is the omega-shaped elastomeric sealing profile, manufactured from high-grade synthetic rubber compounds. These elastomers provide exceptional flexibility, resilience, and resistance to environmental factors.

The omega profile allows the seal to deform elastically during expansion or contraction while maintaining a continuous sealing surface.

Reinforcement System

To improve structural strength and load-bearing capacity, the elastomeric seal may be reinforced with steel plates, anchoring strips, or embedded reinforcement elements. These components help distribute loads and maintain stability under heavy traffic conditions.

Anchoring Mechanism

The joint is securely anchored into the surrounding concrete using mechanical fasteners, anchor bolts, or embedded steel plates. This ensures the system remains stable during structural movement and prevents displacement.

Protective Surface Interface

The top surface of the expansion joint is designed to ensure a smooth and safe transition across the joint area. This is particularly important in bridge decks, highways, and pedestrian areas where surface continuity is essential.

Downloads

OMEGA Seal Expansion Joints — Technical Datasheet PDF · Click to download
