Multipurpose Expansion & Contraction Joints
Civil Infrastructure Components

Multipurpose Expansion & Contraction Joints

Elastomeric structural movement joints engineered to absorb thermal and dynamic loads across a wide range of construction structures.

Request A Quote
Download Technical Datasheet

Manufactured under ISO 9001:2015 certified quality systems, built to specification for OEM and infrastructure applications.

Overview

High-Performance Structural Movement Joints by Maruti Techno Rubber Pvt. Ltd.

Multipurpose Expansion & Contraction Joints from Maruti Techno Rubber Pvt. Ltd. are engineered elastomeric joint systems designed to accommodate structural movements caused by temperature fluctuations, dynamic loads, and long-term material behavior in construction structures.

These joints are critical components in modern infrastructure, allowing controlled expansion, contraction, and movement between adjacent structural elements while maintaining a secure and watertight seal.

Manufactured using high-grade elastomeric compounds such as EPDM and Neoprene, Maruti Expansion & Contraction Joints provide exceptional flexibility, durability, and resistance to environmental stresses. They are specifically designed to absorb structural movement while protecting surrounding materials from cracking, water penetration, and long-term deterioration.

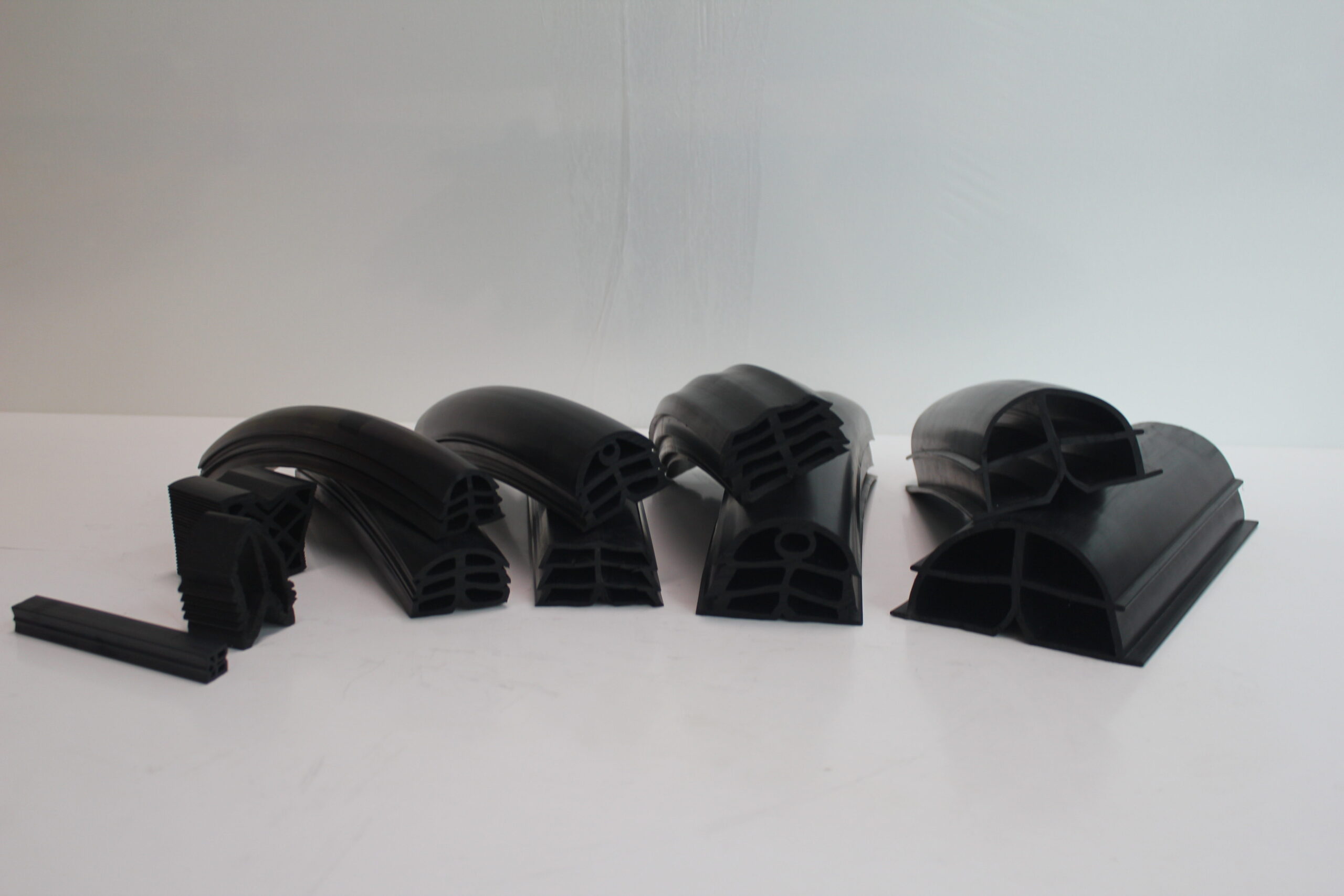

The joints are supplied as preformed elastomeric compression seals or modular profiles that can be installed in concrete or structural gaps to maintain the structural continuity and performance of buildings, transportation infrastructure, and industrial facilities.

These systems are widely used in bridges, highways, buildings, pavements, industrial floors, and water-retaining structures, where structural movement must be accommodated without compromising safety or durability.

Why is it needed?

All construction materials experience movement during their service life. These movements occur due to various environmental and mechanical factors, which can lead to structural stress if not properly managed.

Common Causes of Structural Movement

  • Temperature Variations (Thermal Expansion and Contraction)
    Concrete, steel, and other construction materials expand when temperatures rise and contract when temperatures fall.
  • Dynamic Loads
    Traffic loads on roads and bridges, seismic activity, wind forces, and industrial vibrations can cause repeated movement in structural elements.
  • Concrete Creep and Shrinkage
    Concrete undergoes gradual deformation over time due to sustained loading and moisture loss.
  • Differential Settlement
    Foundations may settle unevenly due to soil conditions or structural loading, resulting in movement between adjacent structural sections.

Consequences Without Expansion Joints

If structural movement is not accommodated, several issues may arise:

  • Formation of cracks in concrete and pavement surfaces
  • Water infiltration leading to corrosion of reinforcement bars
  • Structural fatigue and deterioration
  • Reduced service life of infrastructure
  • Safety hazards for vehicles and pedestrians

Role of Expansion & Contraction Joints

Multipurpose Expansion & Contraction Joints function as movement absorption systems, allowing structural components to expand, contract, or shift without causing damage.

They provide:

  • Controlled movement accommodation
  • Watertight sealing between structural sections
  • Protection against debris and contaminants
  • Improved structural durability and service life

Key Features & Benefits

Versatile Applications - Maruti Expansion & Contraction Joints are suitable for a wide variety of infrastructure and construction applications including:

  • Buildings and commercial complexes
  • Bridges and flyovers
  • Highways and road pavements
  • Industrial floors and warehouses
  • Water-retaining structures

Their adaptable design allows use across different structural systems.

High Movement Accommodation - The elastomeric compression profile allows the joint to absorb:

  • Thermal expansion and contraction
  • Structural settlement
  • Vibrations and dynamic loads
  • Seismic movements

This flexibility ensures reliable performance in demanding conditions.

Durable Elastomeric Construction - Manufactured using premium EPDM or Neoprene elastomers, these joints offer excellent resistance to:

  • UV radiation
  • Ozone exposure
  • Weathering
  • Temperature extremes
  • Mechanical wear

This ensures long operational life even in harsh environments.

Effective Watertight Sealing - The compression profile creates a tight seal within the joint cavity, preventing:

  • Water infiltration
  • Debris accumulation
  • Dust penetration
  • Chemical contamination

This helps protect internal reinforcement and structural elements from corrosion and deterioration.

Low Maintenance Requirements - Due to their durable elastomeric construction and robust design, Maruti Expansion Joints require minimal maintenance, reducing long-term operational costs.

Easy Installation - The joints are designed for quick installation using simple tools and minimal labor. The compression fit system simplifies placement while ensuring reliable sealing performance.

Customizable Profiles - Maruti offers expansion joints in a wide range of:

  • Sizes
  • thicknesses
  • cross-sectional profiles
  • movement capacities

This allows engineers to select the most suitable joint configuration for specific project requirements.

Load Resistance - The joints are capable of withstanding heavy loads from:

  • vehicular traffic
  • industrial equipment
  • structural vibration

They maintain their sealing performance even under repeated loading cycles.

Engineering Design and their functions

The performance of Maruti Expansion & Contraction Joints is achieved through a combination of advanced material engineering and structural design.

Elastomeric Materials (EPDM / Neoprene) - The core sealing element is manufactured from high-performance elastomers that offer:

  • high elasticity and recovery capability
  • resistance to UV radiation and ozone
  • chemical resistance to oils, fuels, and industrial chemicals
  • durability under extreme environmental conditions

These materials ensure the joint can repeatedly compress and recover without permanent deformation.

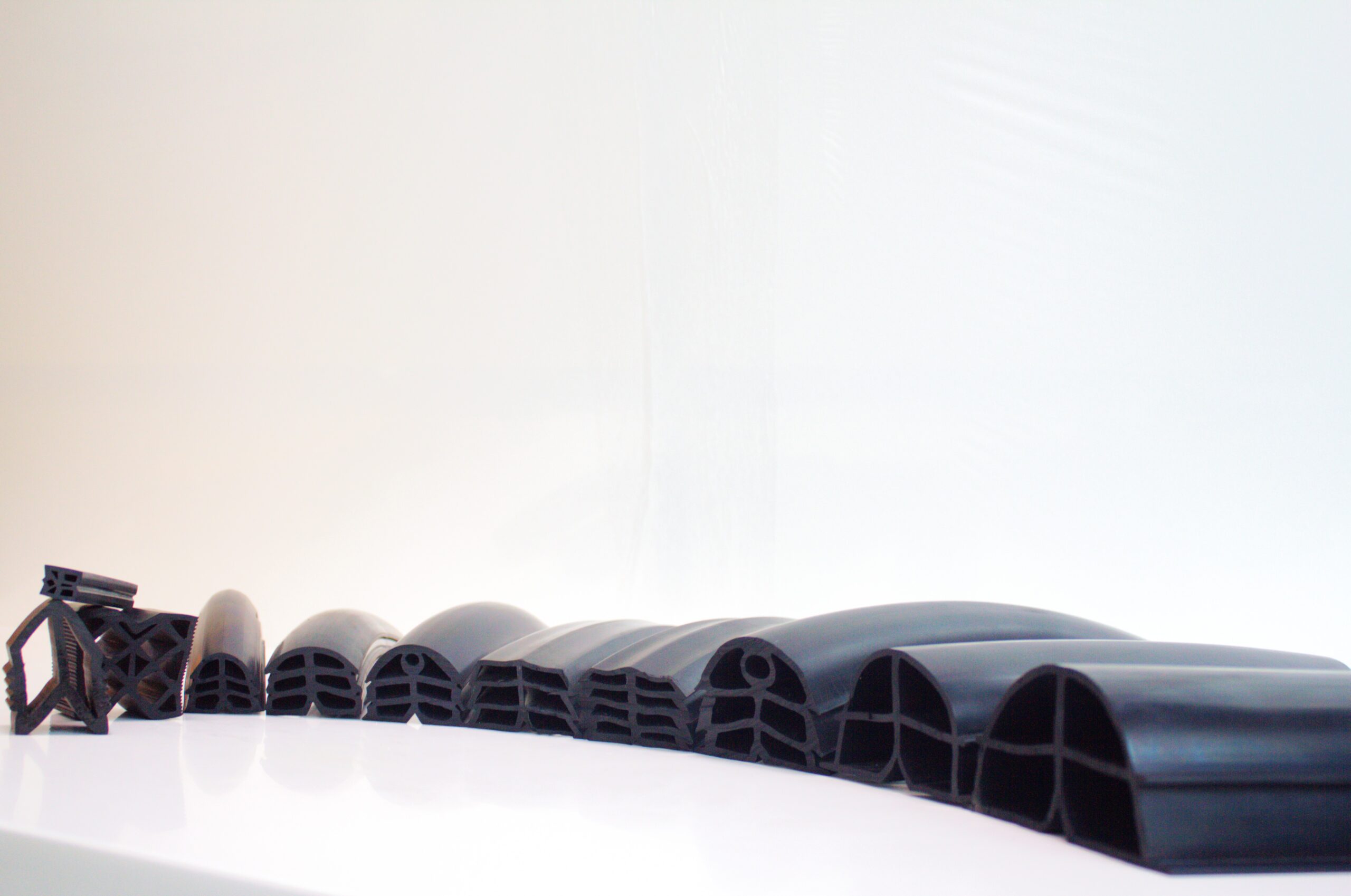

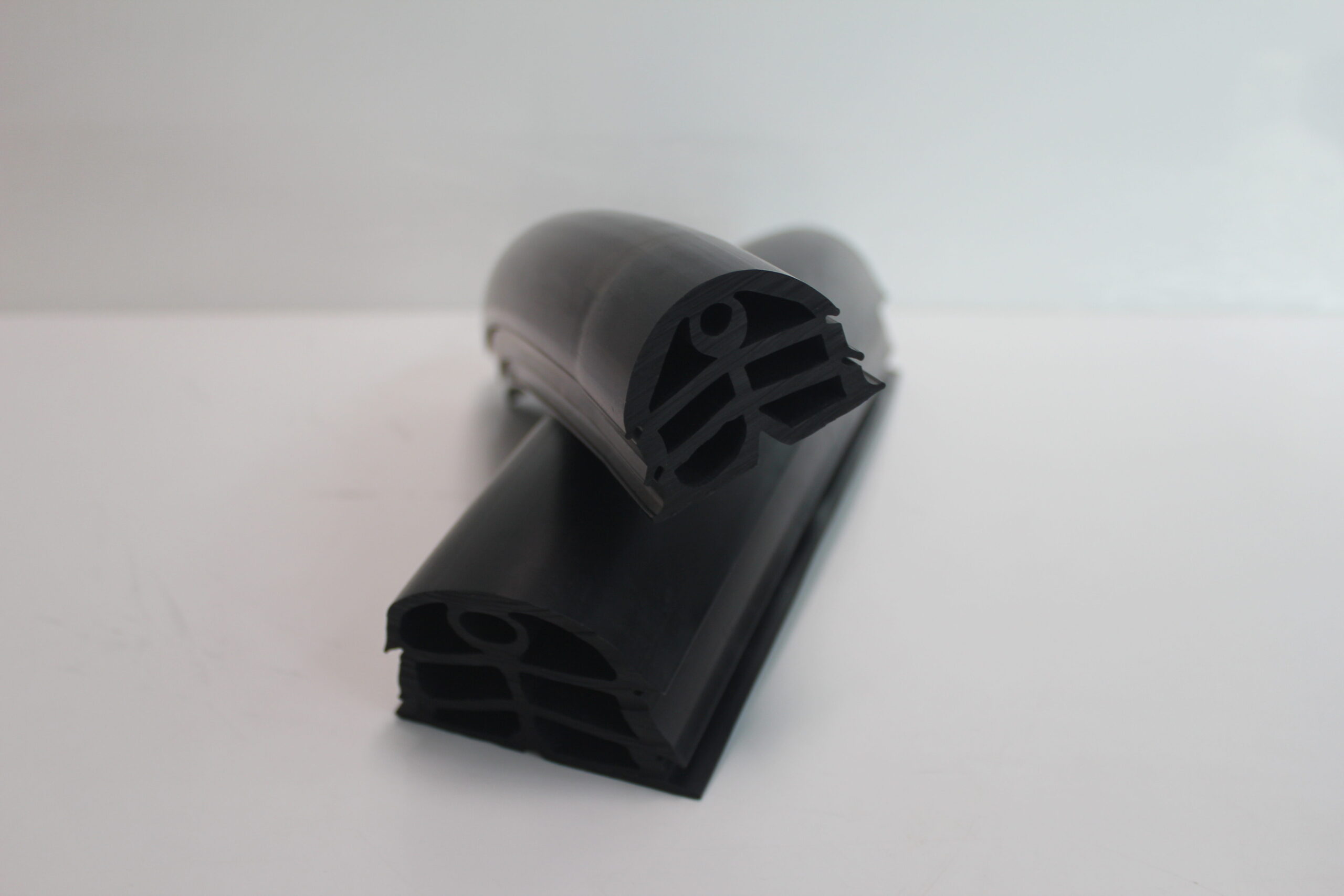

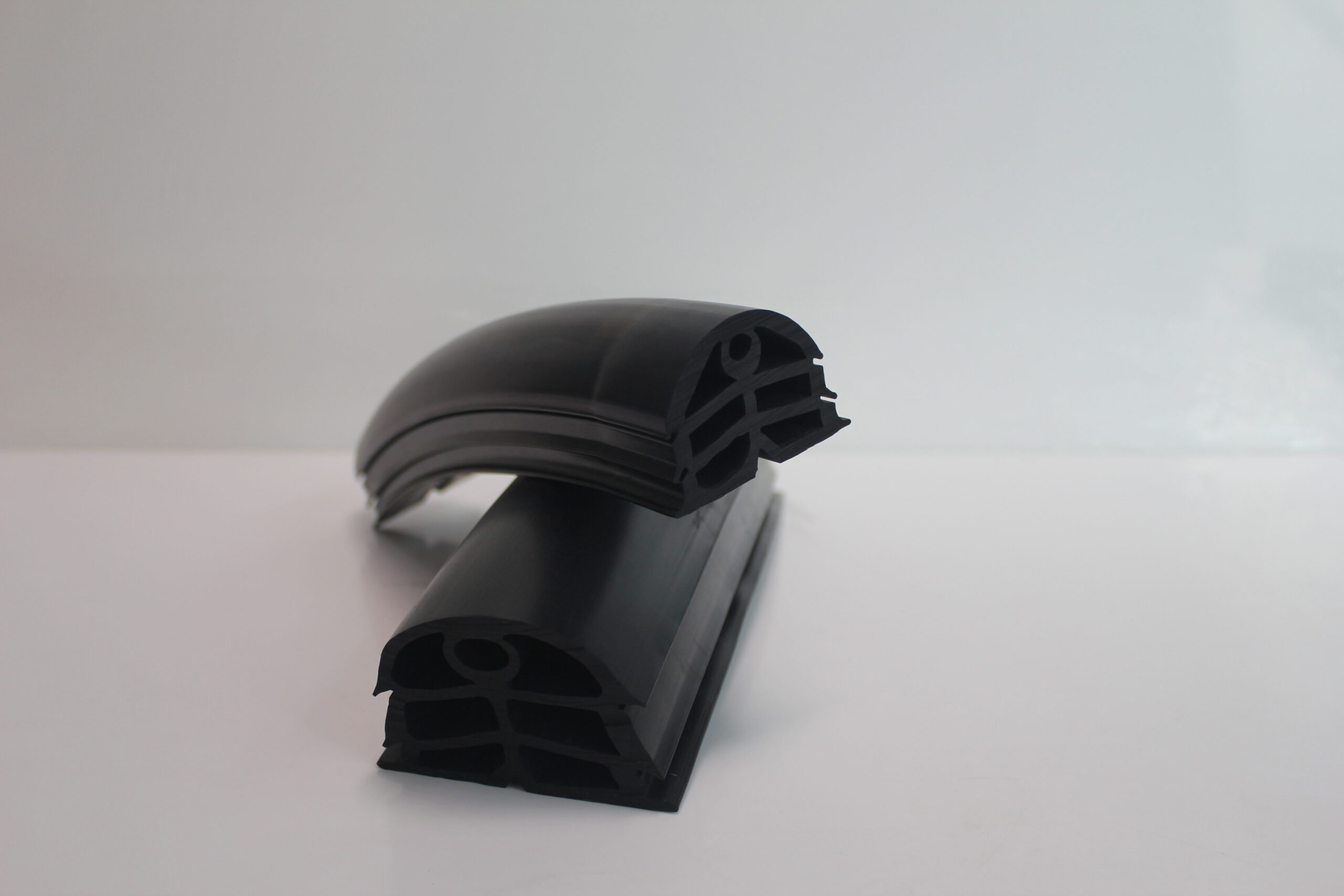

Preformed Compression Profiles - The elastomeric seals are produced in specially designed shapes such as:

  • M-profile
  • W-profile
  • U-profile
  • Omega-profile

These profiles are engineered to compress uniformly within the joint cavity, enabling efficient accommodation of axial and lateral movement.

High Recovery Modulus - The elastomer compounds possess a high recovery modulus, meaning the seal can return to its original shape even after prolonged compression. This prevents permanent deformation and ensures long-term sealing efficiency.

Anchor Blocks and Insert Steel Plates - For heavy-duty applications such as bridges and highways, the joint system may incorporate anchor blocks and steel plates to provide additional mechanical strength and structural support.  These components help prevent displacement of the seal under heavy dynamic loads.

Chemical Resistance - The elastomeric material is formulated to resist exposure to:

  • fuels and oils
  • road salts
  • industrial chemicals
  • contaminated water

This ensures reliable performance in aggressive environments.

Watertight and Dustproof Sealing - The compression seal prevents the ingress of water, dust, and debris into the joint cavity, protecting structural components from corrosion and deterioration.

Modular Profile System - The modular design allows engineers to select joint profiles based on:

  • expected movement range
  • load conditions
  • joint width
  • application environment

This adaptability ensures optimal performance across various project types.

Epoxy Adhesive Fixing - Epoxy sealants are commonly used during installation to secure the joint within the concrete block. This provides strong adhesion and prevents leakage along the joint interface.

Applications

  1. Roadways & Highways:
    • Perfect for asphalt and concrete roads, highways, and expressways where temperature changes and traffic loads cause frequent expansion and contraction.
    • Provides smooth driving surfaces and maintains road safety by preventing cracks and surface degradation.
  2. Bridges & Overpasses:
    • Ensures safe movement in bridge decks and overpasses, absorbing the thermal expansion caused by seasonal changes and ensuring long-term durability.
  3. Building Floors & Walls:
    • Used in flooring systems, concrete walls, and slabs where expansion or contraction due to temperature fluctuations is a concern.
    • Helps prevent cracking, maintaining a smooth surface and aesthetic quality over time.
  4. Pavements & Sidewalks:
    • Installed in paved areas such as parking lots, sidewalks, and public squares to accommodate expansion and contraction, ensuring structural stability.
  5. Water Retaining Structures:
    • Critical for dams, reservoirs, and water treatment plants where temperature variations and hydrostatic pressure cause expansion and contraction. Provides essential sealing to maintain the integrity of the structure.
  6. Industrial Facilities & Warehouses:
    • Essential in factory floors, warehouses, and storage facilities where equipment vibrations, temperature fluctuations, and settlement can cause damage without proper joint systems.

Downloads

Multipurpose Expansion & Contraction Joints — Technical Datasheet PDF · Click to download
