Pre-Fabricated Vertical Drain (PVD) Liner

Maruti Prefabricated Vertical Drain (PVD) Liners are advanced ground improvement solutions designed to accelerate the consolidation of soft, compressible soils such as clay and silt. These drains consist of a high-strength plastic core wrapped in a specialized geotextile filter fabric, forming a strip-shaped drainage element that is installed vertically into weak soil layers.

Soft soils often contain high levels of trapped pore water, which significantly reduces their load-bearing capacity and causes long-term settlement. Without proper treatment, these soils can take many years to consolidate naturally, delaying construction projects and increasing costs.

Maruti PVD systems provide a fast and reliable method to dissipate excess pore water pressure, allowing soil consolidation to occur much more quickly. When installed in combination with preloading or surcharge loading, PVDs dramatically reduce the time required for soil stabilization, enabling infrastructure projects to begin sooner and with greater safety.

These drains are widely used in large-scale infrastructure developments such as highways, railways, ports, airports, industrial facilities, and land reclamation projects, where construction must take place on soft or unstable ground.

Category:

1. Identification of Soft Soil Zone

The first step involves geotechnical investigation to identify soil layers with low permeability and high water content. Such soils—commonly soft clays, silts, or reclaimed land—have very slow natural drainage, making them unsuitable for immediate construction.

PVDs are installed to improve these soil conditions before development begins.

2. Installation of PVD into the Ground

Maruti PVDs are installed vertically using a specialized installation rig equipped with a steel mandrel.

The process involves:

  • Positioning the installation rig according to the design grid pattern
  • Driving the steel mandrel into the soil to the required depth
  • Inserting the PVD strip inside the mandrel
  • Withdrawing the mandrel while leaving the PVD in place

Typical installation depths range between 10 meters and 25 meters, depending on soil conditions and project requirements.

The drains are arranged in a systematic grid pattern across the site to ensure uniform consolidation.

3. Application of Preload or Surcharge Load

After installation, a temporary surcharge load is applied to the ground surface.

This is usually done by placing:

  • Sand fill
  • Soil embankments
  • Temporary loading materials

The surcharge simulates the weight of the future structure, creating vertical stress in the soil. This pressure forces pore water trapped within the soil to move toward the nearest drainage path.

4. Drainage of Pore Water through the PVD System

As pressure increases, water begins to migrate through the soil toward the PVD drains.

The drainage process works as follows:

  1. Water enters through the geotextile filter jacket.
  2. Soil particles are retained by the filter fabric.
  3. Water flows into the longitudinal channels of the plastic core.
  4. The water moves vertically upward through the drain.
  5. It eventually exits into a surface drainage layer or sand blanket.

Because the drainage path becomes much shorter compared to natural soil drainage, water escapes much faster.

5. Soil Settlement and Strength Development

As water drains from the soil, the following processes occur:

  • Excess pore water pressure decreases
  • Soil particles move closer together
  • Soil density increases
  • Shear strength improves
  • Ground settlement stabilizes

This process is known as soil consolidation. Using PVD systems, consolidation that would normally take 5–20 years can be achieved in a few months.

6. Ground Ready for Construction

Once the desired level of consolidation and settlement is achieved, the surcharge load can be removed.

At this stage:

  • Soil strength has significantly improved
  • Long-term settlement risks are minimized
  • The ground becomes stable enough to support structures

The site is now ready for construction of infrastructure or industrial facilities.

  • Accelerated Soil Consolidation – PVD systems significantly reduce the time required for soil settlement, transforming long-term consolidation processes into manageable construction schedules.
  • Cost-Effective Ground Improvement – By improving soil strength efficiently, PVDs reduce the need for:
    • Deep foundation systems
    • Extensive soil excavation
    • Chemical stabilization

This results in substantial cost savings for large infrastructure projects.

  • Improved Structural Safety – Pre-consolidated soil minimizes the risk of excessive settlement or foundation failure, ensuring long-term stability of structures.
  • Reduced Construction Delays – Fast consolidation allows earlier commencement of construction activities, improving overall project timelines.
  • Environmentally Friendly – PVD systems eliminate the need for large quantities of chemical stabilizers and reduce excavation waste, making them a sustainable ground improvement solution.

Maruti Prefabricated Vertical Drain Liners are widely used across major infrastructure sectors.

Transportation Infrastructure

  • Highway embankments
  • Railway track foundations
  • Airport runways and taxiways

Marine and Coastal Projects

  • Port developments
  • Dockyards and container terminals
  • Coastal land reclamation

Industrial Infrastructure

  • Storage yards
  • Oil tanks and silos
  • Industrial plants

Urban Development

  • Building foundations on reclaimed land
  • Industrial parks
  • Logistics hubs

Environmental and Land Reclamation Projects

  • Coastal land reclamation
  • Waste containment areas
  • Large-scale earthworks

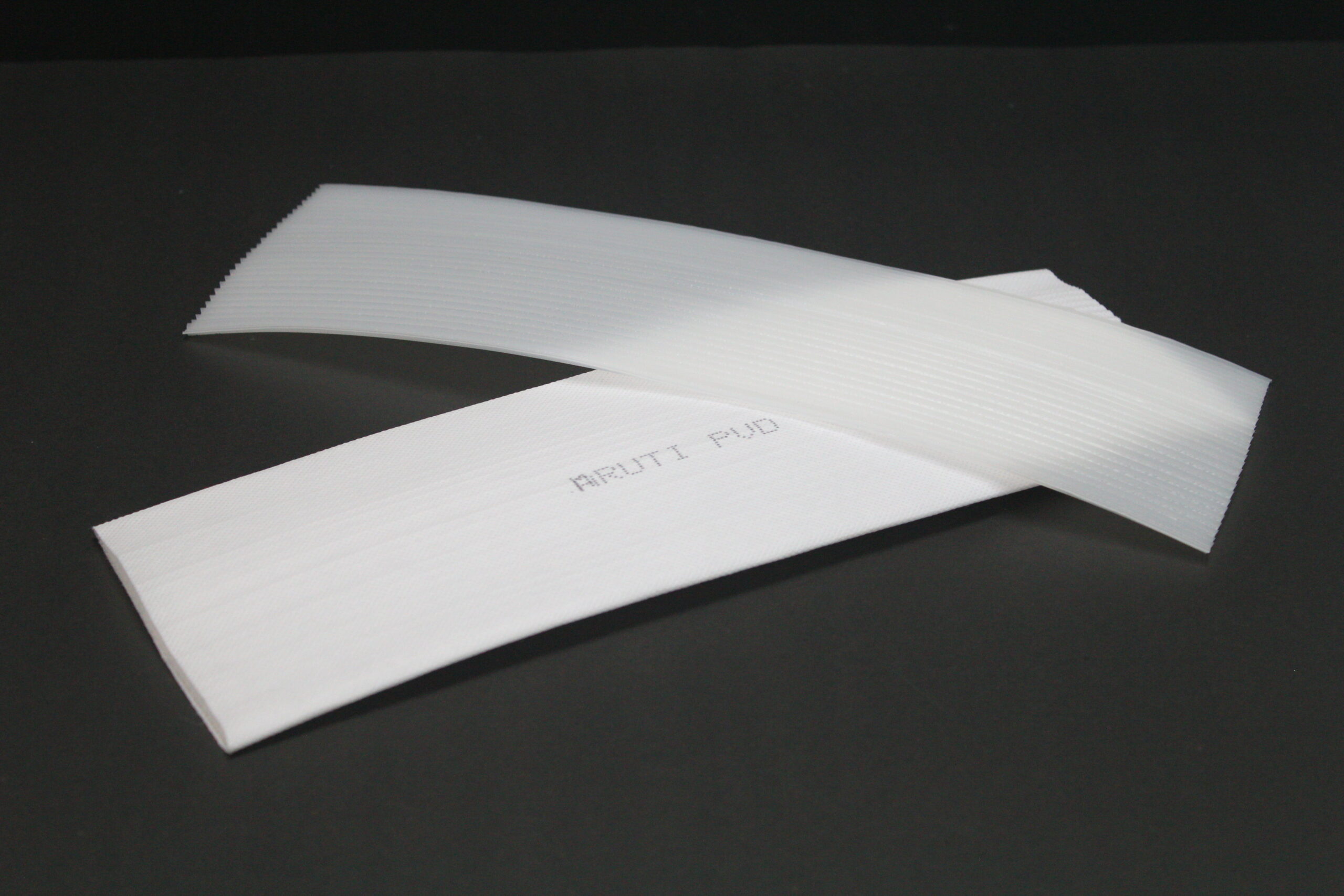

Maruti PVD Liners are engineered with a two-layer composite structure that ensures high performance and durability.

1. High-Strength Plastic Core

The internal core is made from durable polymeric material, typically polypropylene or polyethylene. The core features longitudinal channels or grooves that create a continuous vertical flow path for water.

Functions of the core include:

  • Providing a drainage channel for pore water
  • Maintaining structural integrity under high soil pressure
  • Preventing collapse during installation and consolidation
  • Ensuring high discharge capacity even under load

2. Nonwoven Geotextile Filter Jacket

The plastic core is wrapped with a high-permeability nonwoven geotextile fabric that acts as a filtration layer.

Functions of the geotextile jacket include:

  • Allowing water to enter the drain while retaining soil particles
  • Preventing clogging of the drainage core
  • Maintaining long-term hydraulic performance
  • Providing resistance to biological and chemical degradation

The combination of the structured plastic core and the filtration geotextile ensures efficient drainage and long service life.

  • High Discharge Capacity – The specially designed drainage core ensures efficient vertical water flow even under heavy soil pressure.
  • Advanced Filtration System – The geotextile filter prevents soil particles from entering the core, ensuring long-term clog-free performance.
  • High Tensile Strength – Manufactured from high-quality polymers, Maruti PVD liners maintain structural stability during installation and loading.
  • Rapid Installation – PVD systems can be installed quickly and efficiently using mandrel rigs, enabling large areas to be treated within short timeframes.
  • Chemical and Biological Resistance – The materials used are resistant to soil chemicals, organic matter, and microbial degradation.
  • Long Service Life – Maruti PVD drains are designed to perform reliably for decades under demanding geotechnical conditions.

Maruti PVD Liners are manufactured in accordance with international quality standards and undergo strict testing procedures to ensure performance and durability.

Typical tests include:

  • Tensile strength testing
  • Core discharge capacity testing
  • Filter permeability testing
  • Soil retention and clogging resistance testing
  • Durability and creep performance testing

Our products comply with recognized international standards such as ASTM and ISO testing methods.
