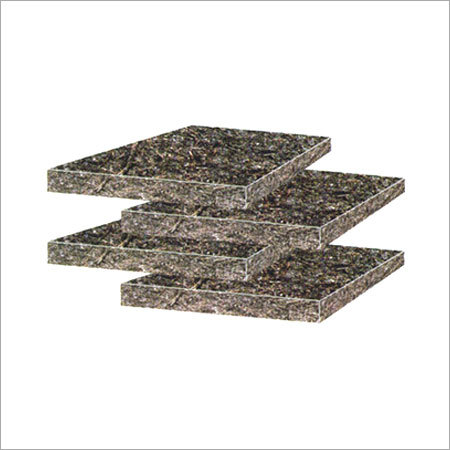

Expansion Joint Filler Board [Compressed Dry Wood Fibers]

High Compressibility – Maruti Expansion Joint Filler Boards are designed to accommodate thermal expansion and contraction in concrete structures. The compressible nature of the board absorbs joint movement without transmitting stress to adjacent slabs.

Excellent Water Resistance – Bitumen impregnation prevents water penetration into the board structure. This helps protect the joint from moisture damage, deterioration, and corrosion of nearby reinforcement.

Flexible and Durable – The combination of wood fibers and bitumen creates a flexible structure capable of withstanding:

• Temperature fluctuations
• Structural vibrations
• Traffic loads
• Mechanical stresses

Shock Absorption Capability – The board provides excellent impact absorption, reducing stress on the concrete edges caused by heavy vehicles, construction equipment, and industrial machinery.

Easy Handling and Installation – Maruti Expansion Joint Filler Boards are lightweight and easy to work with. They can be cut, shaped, and installed on site using standard tools, simplifying the installation process and reducing construction time.

Environmentally Responsible Material – The board is manufactured using natural wood fibers, making it partially biodegradable and environmentally responsible compared to synthetic alternatives.

Cost-Effective Solution – Because of its durability and long service life, the filler board reduces the need for frequent maintenance or repairs, providing an economical solution for expansion joint systems.

Compressed Dry Wood Fiber Structure – The compressed fiber structure provides both mechanical strength and elasticity, allowing the board to compress under pressure while maintaining its dimensional stability.

Bitumen Impregnation – The bitumen treatment improves flexibility and water resistance while protecting the board against microbial growth and environmental degradation.

High Recovery Rate (>80%) – After compression, the board returns to more than 80% of its original thickness, ensuring consistent joint performance even after repeated expansion and contraction cycles.

Low Temperature Flexibility – At lower temperatures, the material retains its flexibility and resists cracking. The molecular structure of the impregnated fibers allows the board to maintain structural integrity even in cold climates.

High Temperature Stability – At elevated temperatures, the bitumen softens slightly but maintains the structural integrity of the board. This allows the filler board to absorb expansion forces without disintegrating or flowing.

1. Roadways & Highways:
   • Installed in roadways and highways, the compressed wood fiber filler board effectively accommodates the expansion and contraction of concrete surfaces due to temperature fluctuations, preventing cracking or displacement.
2. Bridges & Overpasses:
   • Expansion joints in bridge decks and overpasses are subjected to significant movement due to traffic loads and environmental factors. The filler board helps manage this movement, ensuring long-term structural stability.
3. Building Construction:
   • Used in floors, walls, and slabs of commercial, residential, and industrial buildings, where movement due to thermal expansion or settling must be accommodated without compromising the structure.
4. Pavements & Sidewalks:
   • Installed in paved surfaces such as sidewalks, parking lots, and pavements, the filler board ensures a smooth transition over expansion joints while absorbing the pressure from foot traffic or light vehicle loads.
5. Water Retaining Structures:
   • In structures such as dams, reservoirs, and water treatment plants, the filler board helps maintain the integrity of expansion joints, preventing the infiltration of water that could compromise the structure.
6. Industrial Applications:
   • The material is also used in industrial floors, warehouses, and manufacturing facilities where expansion joint movement due to heavy machinery or temperature changes must be absorbed without damaging the surface.

Maruti Expansion Joint Filler Boards are manufactured in accordance with recognized international standards for expansion joint fillers.

These include:

• IS 1838 (Part I) – 1983
  Specification for preformed expansion joint fillers for concrete structures.

• ASTM D1751
  Standard specification for preformed expansion joint fillers for concrete paving and structural construction.

• BS 1142
  British Standard specification for expansion joint filler boards.

Compliance with these standards ensures consistent quality, reliability, and suitability for infrastructure projects worldwide.

Maruti Expansion Joint Filler Boards are supplied in standard sizes suitable for most construction applications.

Custom sizes and thicknesses may be available upon request depending on project requirements.

Maruti Expansion Joint Filler Boards are manufactured through a specialized process that ensures both mechanical performance and long-term durability.

Compressed Dry Wood Fibers – High-quality dry wood fibers are mechanically compressed to form a dense, uniform board structure. This compression provides the material with the required structural strength and compressibility, allowing it to accommodate movement within expansion joints without collapsing.

Bitumen Impregnation – Before compression, the wood fibers are thoroughly impregnated with bitumen, which significantly enhances the performance characteristics of the board.

Bitumen impregnation provides:

• Water resistance
• Flexibility
• Resistance to microbial degradation
• Protection against environmental exposure

This treatment also prevents excessive moisture absorption while maintaining the board’s compressibility.

Controlled Compression and Curing – The treated fibers are compressed under controlled pressure and temperature conditions to produce boards with consistent density, strength, and flexibility. The result is a stable and durable filler board capable of performing under cyclic expansion and contraction loads.

Concrete expands and contracts as temperature fluctuates or as loads are applied. Expansion joints are intentionally created gaps in the structure that allow this movement to occur safely.

The filler board is placed within these joints to:

• Absorb compressive forces when the concrete expands
• Maintain separation between adjacent slabs
• Prevent debris and foreign materials from filling the joint space
• Protect concrete edges from damage

When the concrete expands during hot weather or heavy loading, the board compresses. When the structure contracts, the board recovers to its original thickness, maintaining the joint gap.

This continuous compression and recovery cycle protects the structural integrity of the concrete over its service life.
