Polyethylene Backer Rod
Insulation and Protection Materials

Polyethylene Backer Rod

Closed-cell polyethylene backer rod that controls sealant depth and improves joint-sealing performance in construction and infrastructure joints.

Request A Quote
Download Technical Datasheet

Manufactured under ISO 9001:2015 certified quality systems, built to specification for OEM and infrastructure applications.

Overview

Flexible Joint Filler for Sealant Support in Construction and Infrastructure

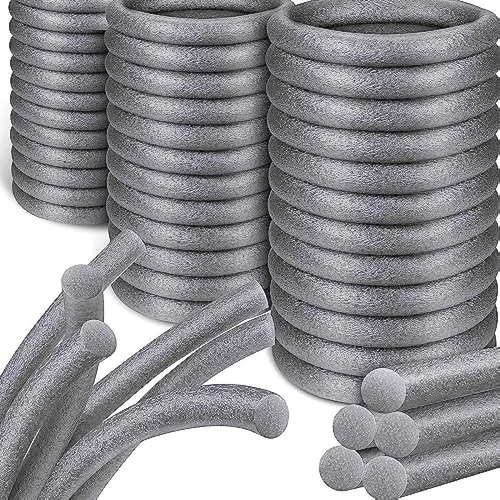

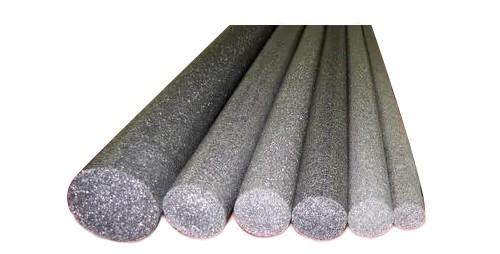

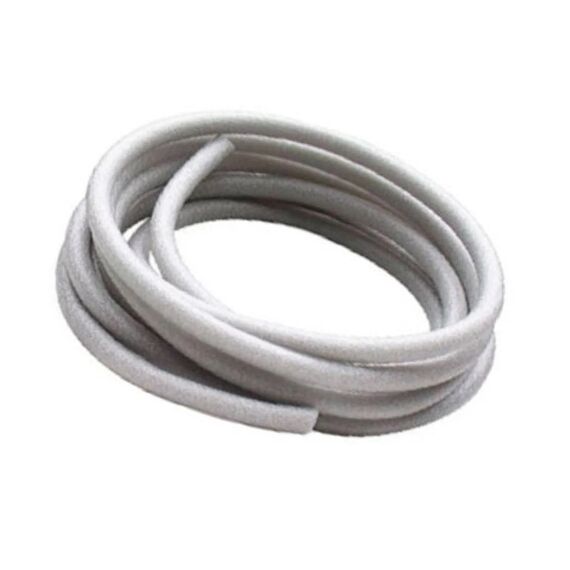

Maruti Polyethylene Backer Rod is a round, flexible foam material used as a joint backing and bond breaker in construction joints prior to the application of sealants. It is widely used in civil engineering, building construction, and infrastructure projects to ensure proper sealant performance and durability.

Manufactured from closed-cell polyethylene foam, the backer rod is designed to control sealant depth, improve joint performance, and support sealants during application and curing. By acting as a compressible filler material inside expansion joints and cracks, the backer rod helps maintain the correct joint geometry and ensures optimal sealant adhesion.

The product also prevents three-sided adhesion, which is a common cause of premature sealant failure. By allowing sealants to adhere only to the two opposing sides of the joint, the backer rod ensures that the sealant can expand and contract freely with structural movement, thereby improving the longevity and flexibility of the joint system.

Maruti Backer Rods are widely used in bridge construction, pavements, precast concrete systems, façade joints, and building expansion joints, where reliable sealing and movement accommodation are critical.

Key Features

Water and Chemical Resistance - The closed-cell polyethylene structure prevents water absorption and provides strong resistance to various chemicals, oils, and environmental contaminants. This makes the backer rod suitable for both indoor and outdoor applications.

Flexible and Compressible Structure - Backer rods are highly flexible and can be easily compressed during installation to fit joints of varying widths. Once installed, they retain their shape and provide stable backing support for sealants.

Smooth Outer Surface - The outer layer of the foam rod is smooth and uniform, allowing sealants to be applied evenly across the joint without irregularities.

Excellent Sealant Compatibility - Polyethylene backer rods are compatible with a wide range of commonly used construction sealants, including:

  • Butyl sealants
  • Polyurethane sealants
  • Silicone sealants
  • Polysulfide sealants
  • Acrylic sealants

This compatibility ensures reliable joint sealing across multiple construction systems.

Benefits

Sealant Depth Control - Backer rods help maintain the correct sealant depth-to-width ratio, which is critical for ensuring proper sealant performance. Maintaining the correct depth prevents sealant cracking or premature failure.

Prevents Three-Sided Adhesion - One of the most important functions of a backer rod is acting as a bond breaker. By preventing the sealant from adhering to the bottom of the joint, the backer rod ensures that the sealant bonds only to the sides of the joint. This allows the sealant to stretch and compress during thermal movement without tearing.

Provides Sealant Support - Backer rods act as a physical backing for sealants during application, preventing the sealant from flowing too deeply into the joint and ensuring a uniform joint profile.

Maintains Joint Geometry - The backer rod maintains the proper shape and profile of the sealant bead, which improves both the functional performance and visual appearance of the joint.

Accommodates Structural Movement - Construction joints are designed to accommodate movement caused by temperature changes, structural loads, and material expansion or contraction. Backer rods help maintain flexibility within the joint system, enabling the sealant to move effectively.

Improves Weather Resistance - By supporting the sealant system and maintaining joint integrity, backer rods contribute to improved resistance against:

  • Rainwater infiltration
  • Air leakage
  • Temperature variations
  • UV exposure

Easy Installation - Backer rods are lightweight, flexible, and easy to handle. They can be quickly installed using simple tools such as rollers or blunt instruments, reducing installation time and labor requirements.

Reduces Sealant Consumption - By filling the lower portion of the joint, backer rods significantly reduce the amount of sealant required. This results in lower material costs and more efficient sealant usage.

Applications

Maruti Polyethylene Backer Rods are widely used in both building construction and infrastructure projects where joint sealing is required.

Bridge Expansion Joints - Backer rods are commonly used in bridge joints to support sealants that must accommodate continuous movement caused by temperature changes, traffic loads, and structural dynamics.

Concrete Pavement Joints - Used in highways, roads, and airport pavements to support joint sealants that prevent water infiltration and maintain pavement integrity.

Precast Concrete Panels - Installed between precast elements to provide reliable sealing between panel joints while allowing structural movement.

Window and Door Perimeters - Backer rods provide a backing for sealants around window and door frames, improving weatherproofing and preventing air or water leakage.

Wall Panels and Façade Joints - Used in curtain wall systems and façade joints to maintain waterproofing and accommodate thermal expansion and contraction of building materials.

Material Composition

Maruti Backer Rods are manufactured using closed-cell polyethylene foam, a lightweight and durable polymer material known for its excellent resistance to moisture, chemicals, and environmental exposure.

Closed-Cell Foam Structure

The foam structure consists of tightly sealed microscopic cells that prevent the absorption of water or moisture. This closed-cell design provides:

  • High resistance to water penetration
  • Excellent compressibility and recovery
  • Long-term durability in construction environments

The smooth outer skin of the backer rod further improves compatibility with sealants and simplifies installation.
